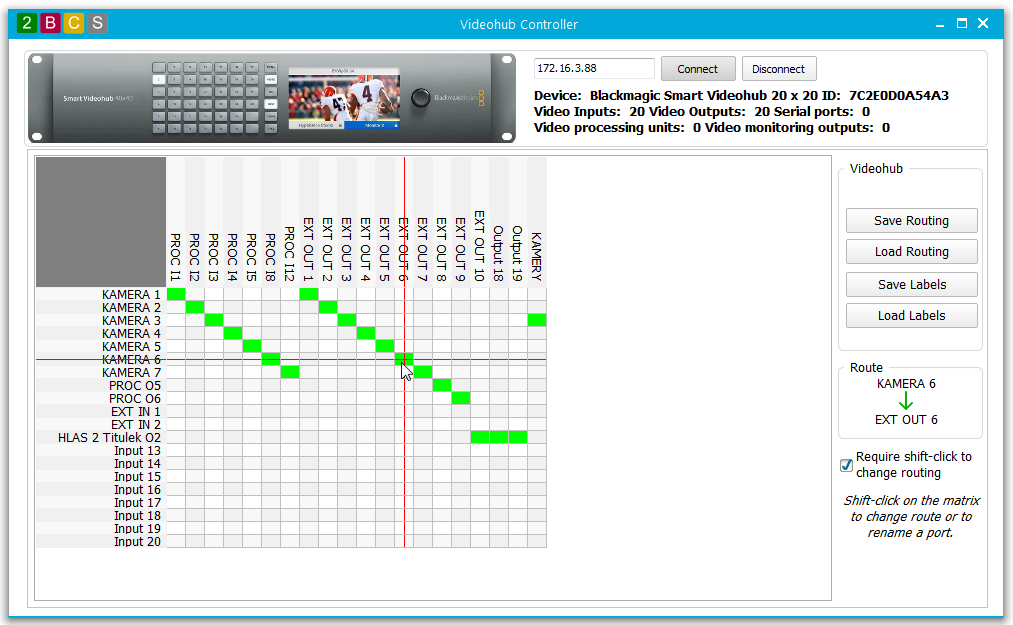

Videohub controller

Videohub controller is tool for configuring Blackmagic Design video/smart video hubs using matrix style grid:

Features

• Connect to Videohub and Smarthub routers via Ethernet protocol
• Dispay basic information about connected router (Name, ID, port count,...)
• Change routing in simple matrix style
• Rename inputs and outputs
• Save/load routing
• Save/load input and output labels

Command line arguments

Videohub controller can have two command line arguments:

1. IP address of the video hub controller
2. Keyword "auto" - connect automatically on startup

Example:

videohubcontroller.exe 192.168.1.100 auto

Usage:

Select input/output combination and (shift-)click to set routing.

Shift click on input or output name to set its label

Status

This tool is in alpha state. It is our internal tool released to general public for free use.

Download

Download here - videohubcontroller.exe (17MB)

Installation

Just download and run the exe file. No need for any installation or any external libraries. Runs under Windows 7 and newer, should run under Windows XP (untested).

Contact

You can contact me at radekattwobearsdotcz.
